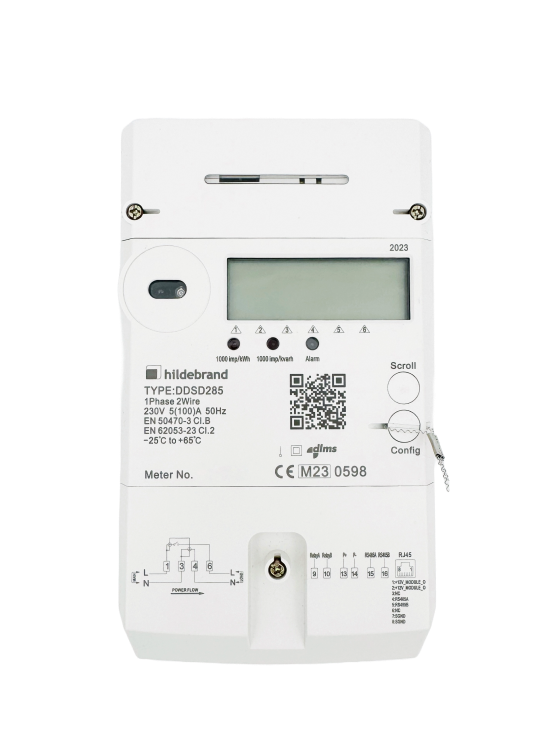

Glow 285
Single Phase Meter
A submetering solution that offers an easy way to access electricity data for billing and consumption insights. Functions like a smart meter with simple installation and provides data to the Glow ecosystem.
Key Features
Real-Time Monitoring
Programmable and customisable meter with real-time electricity monitoring capabilities.
Multiple Connectivity
Integrated WiFi, Bluetooth, and optional NB-IoT or 2G with global connectivity via eSIM.
Secure & Reliable
32-bit microcontroller with 4MB flash memory and tamperproofing with sealable screws.
MID Compliant
Meets MID compliance standards for accurate billing and consumption insights.
Time Synchronization
Battery-powered internal clock with network time synchronization via NTP.
Easy Installation
Simple installation with local or remote commissioning support and automatic firmware updates.
Technical Specifications
Model
Glow 285
Current Rating
5(100)A
Voltage
220/230/240V
Accuracy Class
Class B (EN 50470-3), Class 1 (IEC 62053-21)
Operating Temperature
-25°C to +65°C
Communication
WiFi, Bluetooth, NB-IoT, 2G
Display
LCD with manual check
Dimensions
220 x 125 x 75.5mm
Weight
1.0kg
Pulse Constant
1000imp/kWh, 1000imp/kvarh
Applications
Residential Properties
Electricity billing for large scale residential properties and apartment complexes
Commercial Buildings
Submetering for commercial properties and non-domestic settings
Data Analytics
Integration with submetering products for comprehensive energy insights
Ready to Get Started?
Contact our team to learn more about the Glow 285 Single Phase Meter and how it can benefit your application.
