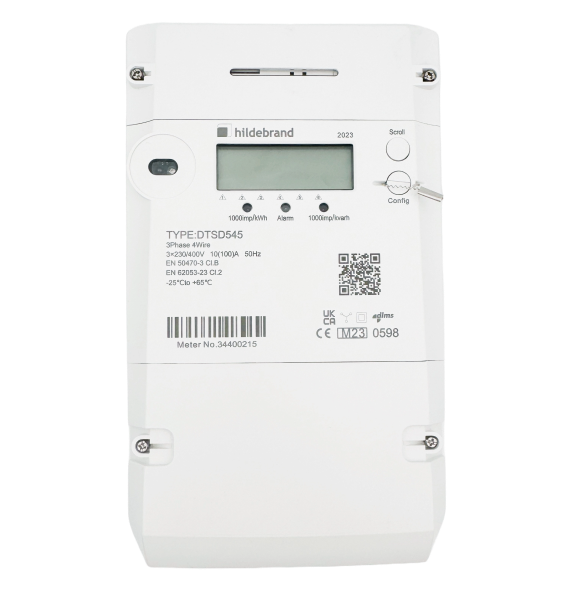

Glow 545
Three Phase Meter
A submetering solution that offers an easy way to access electricity data for billing and consumption insights. Designed for commercial and light industrial applications requiring balanced three-phase monitoring.
Key Features
Three-Phase Monitoring
Comprehensive three-phase electricity monitoring with both CT and DT connection options available.
Advanced Analytics
Real-time electricity monitoring with integration capabilities for comprehensive submetering solutions.
Industrial Grade
32-bit microcontroller with 4MB flash memory and robust construction for commercial applications.
Multiple Connectivity
Integrated WiFi, Bluetooth, and optional NB-IoT or 2G with global connectivity via eSIM.
Time Synchronization
Battery-powered internal clock with network time synchronization and automatic firmware updates.
Flexible Configuration
Available as direct current and current transformer types with remote commissioning support.
Technical Specifications
Model
Glow 545
Current Rating
1(6)A, 5(6)A, 5(10)A (CT) / 5(100)A, 10(100)A, 20(160)A (DT)
Voltage
3x230/400V
Accuracy Class
Class 0.5S (CT), Class 1 (DT)
Operating Range
0.5Un - 1.2Un
Communication
WiFi, Bluetooth, NB-IoT, 2G
Display
LCD with manual check
Dimensions
260 x 170 x 85mm
Weight
2.2kg
Pulse Constant
1000imp/kWh, 1000imp/kvarh
Applications
Commercial Buildings
Office buildings, shopping centers, and large commercial facilities
Light Industrial
Manufacturing facilities and light industrial complexes
Large Scale Properties
Electricity billing for large scale properties in both residential and non-domestic settings
Ready to Get Started?
Contact our team to learn more about the Glow 545 Three Phase Meter and how it can benefit your commercial application.
